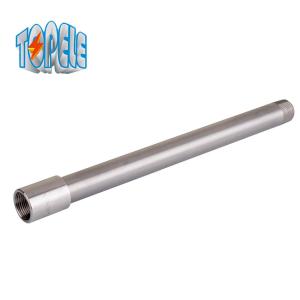

Gi Electrical Pipe BS4568 Conduit Hot DIP Galvanized With Coupler Cap

Gi Electrical Pipe BS4568 Conduit Hot DIP Galvanized with Coupler and Cap

Description:

TOPELE BS4568/BS31 conduit

Marking: TOPELE

Material: Steel

Finish: Hot dipped galvanized / pre- galvanized; class 3 / class 4

Standard: BS4568/BS31

Size: 20mm, 25mm,32mm, 3/4”, 1”,1-1/4”

General:

Steel BS31 G.I. conduit is manufactured from a mild steel tube,It has an accurate circular cross section,a uniformand wall thickness,a defect free interior surface.The finished threads,BS4568,conforms to the BS31 1940 ,Each length of the conduit have the size,logo,product name print or engraved to make as installation instructions

Application:

BS31 conduit can be installed indoors or outdoors,in dry or wet locations,exposed or concealed,in all kinds of atmospheric conditions if use the standared thickness,the galvanized thickness exceeding 70 micro meter.it provides excellent mechanical protection for the conductors while reducing Electro-Magnetic Field exposure and shielding.

BS fittings:

TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.

Hot Dipped Galvanized BS4568 Conduit

Pre Galvanized BS4568 Conduit

Gi Electrical Pipe BS4568 Conduit

Gi Electrical Pipe BS4568 Conduit Hot DIP Galvanized With Coupler Cap Images
