Galvanized Handy Junction Box UL Listed 2X4 Inch Steel

Name: Galvanized Handy Junction Box UL Listed 2X4 Inch Steel
Brand: TOPELE
Price: 1 USD

Brand Name : TOPELE

Model Number : 52151, 52161, 52171

Certification : CSA/ISO

Place of Origin : Zhejiang, China

MOQ : 1000pcs

Price : negotiable

Payment Terms : T/T at sight, irre. L/C at sight

Supply Ability : 10000pcs per day

Delivery Time : 15 days

Packaging Details : Carton Box

Material : Galvanized Steel

Size : 4"x4"x1-1/2", 4"x4"x1-7/8", 4"x4"x2-1/8"

Thickness : 0.6mm-1.6mm

Depth : 1-1/2" or 1-7/8" or 2-1/8"

Type : Drawn

Modle : 52151, 52161, 52171

Contact Now

Product Description

U L Listed 1-7/8 Deep Steel Handy Junction Box For Conduit

Description:

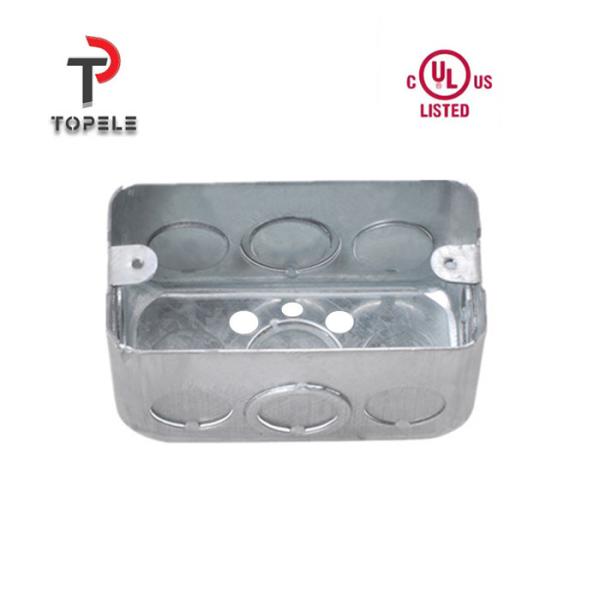

TOPELE 4"x2" Electrical Conduit Handy Box
•Type: Drawn
•Depth: 1-7/8" or 2-1/8"
•For surface-mounted wiring
•Made of Pre-Galvanized steel
•Thickness:0.8mm,1.0mm,1.2mm,1.5mm,1.6mm
•Square box and Octagonal box are also available
•Dimension
4''*2''*1-7/8''Deep 1/2'',3/4'',1/2&3/4''
4''*4''*2-1/8''Deep 1/2'', 3/4'', 1/2''&3/4''
•Thickness:0.6mm, 0.8mm,1.0mm, 1.2mm, 1.5mm,1.6mm

Applications:

TOPELE ELECTRICAL CONDUIT OUTLET BOX

These handy utility boxes are used for convenience outlets, switches and small junction boxes in exposed work applications. They are great for appliances and machinery. Extension rings are available to provide a means of adding additional wire capacity or to serve as outlet boxes for surface conduits.

Field Names: Handy box, utility box, 2x4 box, switch box,device box, handy box extension ring, utility box
extension ring.
Specifications:

TOPELE square conduit box

CAT#	KO. SIZE	DESCRIPTION	THICKNESS
1-1/2'' Deep
TP52151-1/2”	1/2''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52151-3/4”	3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52151-1/2”&3/4”	1/2''&3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
1-7/8'' Deep
TP52161-1/2”	1/2''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52161-3/4”	3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52161-1/2”&3/4”	1/2''&3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
2-1/8'' Deep
TP52171-1/2”	1/2''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52171-3/4”	3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm
TP52171-1/2”&3/4”	1/2''&3/4''	Galvanized Steel	0.6/0.8/1.0/1.2/1.5/1.6mm

Competitive Advantage:

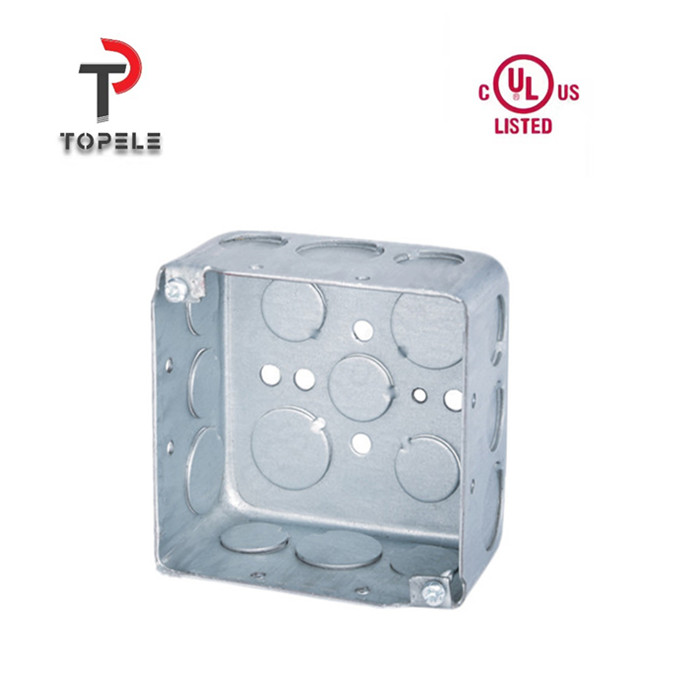

TOPELE 4"x4" Electrical Conduit Square Box
TOPELE 4” Boxes can be surface or flush mounted when multidirectional conduit runs are necessary, These boxes include a raised ground provision.
