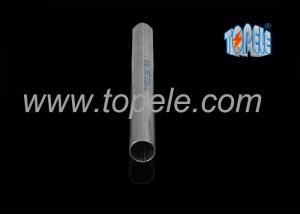

Thin thickness EMT Conduit and Fittings 1/2" to 4" hot dipped galvanized tube
Description:
Thin thickness EMT Conduit and Fittings 1/2" to 4" hot dipped galvanized tube
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration
- The main markets of EMT are Latin America, South America, America, dubai and other middle eastern countries
- Corrosion resistance
- long-lasting protection
- Interior surface free from defects so that easy to wire pilling
- 10' lenghts, with special lenght available
- steel coupling and connector produced in -house
- uniform wall thickness
Key words: EMT CONDUIT, EMT PIPE , EMT TUBE , ELECRICAL METALLIC TUBING , PRE-GALVANIZED CONDUIT , HOT DIPPED GALVANIZED
Applications:
TOPELE EMT CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of Pre-galvanized steel or Hot dipped galvanized steel and has an organic coating inside.
From thickness, TOPELE have standard and thiner for customer choose,the thickness can also be customized according to the customer's requirements.
From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.
Specifications:
- Standard: 1/2"-4" IMC CONDUIT X 10' / UL1242 & ANSI C80.6
- Brand Name: TOPELE
- Color Family : Metallics
- Conduit type : Metallic
- Type : Conduit
- Flexible : No
- Length : 10 ft.
- Material : Galvani
- zed steel / Hot-dipped Galvanized
- Size: from 1/2" to 4 "
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
| |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | | | |
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |
| Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
| EMT Tube - thin wall thickness pipe | | | |
| 1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
| 3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
| 1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
| 1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
| 1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
| 2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728
|
Competitive Advantage:
EMT Conduit
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
